Magnetic Power Generator System
Generator Speci cations:
▪ Output Power Capacity: 5 MWh / 6.2 MVA
▪ Max Con gurable Power: 5 MWh / 6.2 MVA
▪ Nominal Output Voltage: 480V 3PH
▪ Output Voltage Distortion: Less than 5%
at full load
▪ Output Frequency (sync to mains): 60 Hz
– programmable up to 75 Hz
+/- 0.5/1/2/4/6/8%
▪ Crest Factor: Unlimited
▪ Topology: Delta Conversion On-Line
▪ Waveform Type: Sine wave
▪ Bypass: External Static Bypass
▪ Output Connections: (1) Hard Wire 4-wire
(3PH + G)
Power Generation System -5 MWh
The AMTEK Generator is a stand-alone electrical
generator based on the proprietary magnetic
induction technology. It is capable of generating
electrical power by itself, no external input power
required, thus no running cost. Rotation of the
AMTEK Generator is kick started by the internal
starter; self-sustaining its rotation and increases its
speed by magnetic force to high speed rotation to
generate electrical power.
The AMTEK Power Generation System is a
packaged turnkey solution for the AMTEK
Generator and Power Distribution System that can
be con gured for various sizes of installation and
environment; Standalone, OFF-Grid or ON-Grid.
It is equipped with functions such as Control,
Protection, Inverter, Monitoring and Energy
Storage.
With network system (including GPS,
Transformer with Regulator, 24 hour/day power).
(Made in Canada)
Magnetic Generator and Packaged Turnkey
Power Distribution System
Magnetic Power Generator,
5 MWh System
The AMTEK Power Distributor is designed and
customized if necessary as AC Tesla or as others
-Harness your power, a strategic partner. AC Tesla
is an electrical system engineering, testing and
grid connection company specializing in normal
and emergency electrical distribution equipment.
Portable Power Trailer
With Graphene Supercapacitor Energy Storage System
Magnetic Power Generator System

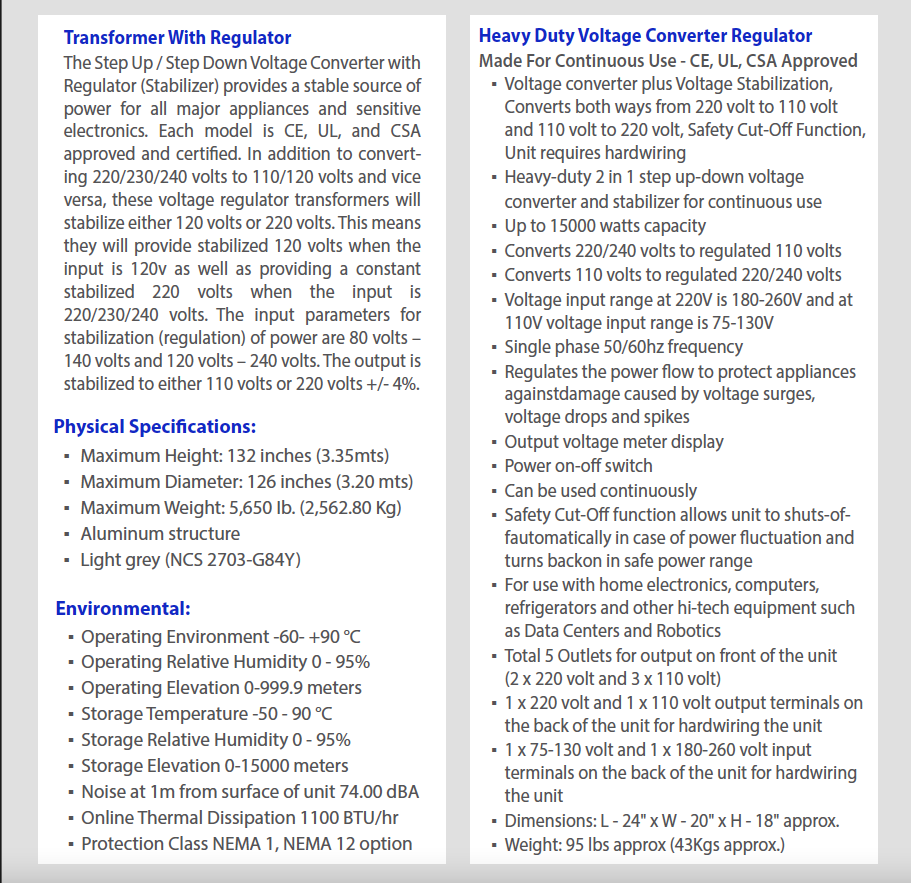

Transformer With Regulator
The Step Up / Step Down Voltage Converter with
Regulator (Stabilizer) provides a stable source of
power for all major appliances and sensitive
electronics. Each model is CE, UL, and CSA
approved and certi ed. In addition to converting
220/230/240 volts to 110/120 volts and vice
versa, these voltage regulator transformers will
stabilize either 120 volts or 220 volts. This means
they will provide stabilized 120 volts when the
input is 120v as well as providing a constant
stabilized 220 volts when the input is
220/230/240 volts. The input parameters for
stabilization (regulation) of power are 80 volts –
140 volts and 120 volts – 240 volts. The output is
stabilized to either 110 volts or 220 volts +/- 4%.
Heavy Duty Voltage Converter Regulator
Made For Continuous Use – CE, UL, CSA Approved
▪ Voltage converter plus Voltage Stabilization,
Converts both ways from 220 volt to 110 volt
and 110 volt to 220 volt, Safety Cut-O Function,
Unit requires hardwiring
▪ Heavy-duty 2 in 1 step up-down voltage
converter and stabilizer for continuous use
▪ Up to 15000 watts capacity
▪ Converts 220/240 volts to regulated 110 volts
▪ Converts 110 volts to regulated 220/240 volts
▪ Voltage input range at 220V is 180-260V and at
110V voltage input range is 75-130V
▪ Single phase 50/60hz frequency
▪ Regulates the power ow to protect appliances
againstdamage caused by voltage surges,
voltage drops and spikes
▪ Output voltage meter display
▪ Power on-o switch
▪ Can be used continuously
▪ Safety Cut-O function allows unit to shuts-offautomatically
in case of power uctuation and
turns backon in safe power range
▪ For use with home electronics, computers,
refrigerators and other hi-tech equipment such
as Data Centers and Robotics
▪ Total 5 Outlets for output on front of the unit
(2 x 220 volt and 3 x 110 volt)
▪ 1 x 220 volt and 1 x 110 volt output terminals on
the back of the unit for hardwiring the unit
▪ 1 x 75-130 volt and 1 x 180-260 volt input
terminals on the back of the unit for hardwiring
the unit
▪ Dimensions: L – 24″ x W – 20″ x H – 18″ approx.
▪ Weight: 95 lbs approx (43Kgs approx.)
▪ Maximum Height: 132 inches (3.35mts)
▪ Maximum Diameter: 126 inches (3.20 mts)
▪ Maximum Weight: 5,650 Ib. (2,562.80 Kg)
▪ Aluminum structure
▪ Light grey (NCS 2703-G84Y)
Physical Speci cations:
Environmental:
▪ Operating Environment -60- +90 °C
▪ Operating Relative Humidity 0 – 95%
▪ Operating Elevation 0-999.9 meters
▪ Storage Temperature -50 – 90 °C
▪ Storage Relative Humidity 0 – 95%
▪ Storage Elevation 0-15000 meters
▪ Noise at 1m from surface of unit 74.00 dBA
▪ Online Thermal Dissipation 1100 BTU/hr
▪ Protection Class NEMA 1, NEMA 12 option
We Enlighten Your Life
Nous Illuminons Ta Vie
Iluminamos Tu Vida
AMTEK GROUP
Montréal, Canada.
Tel: +1 (514) 819-1653 l www.amtekgroup.com
Packaged Turnkey Power
Distribution System
