560Wp High-Efficiency Graphene PV Module
Features

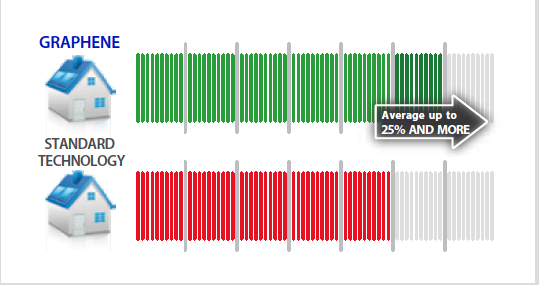

• More Power per sq.ft.
• No Micro-crack Effect
• Less Impact On shading
Mechanical Parameters
Length: 89.69 in.
Thickness: 1.18 in.
Frame: Anodized Aluminium
Width: 44.65 in.
Weight: 59.53 Ibs.
Thermal Parameters
Temperature coefficient of power: – 0.29% /K
Temperature coefficient of current: 0.045% /K
Temperature coefficient of voltage: – 0.25% /K
Nominal operating cell temperature: 108 +/- 36°F
Certifications & Warranty
Certification: IEC 61215
PID & LID Protection: 100%
Fire Resistance Rating: Type 2
Warranty: 30 Years
Performance Warranty: 0.2% Per Year
Unique Features of Graphene
■ Transparent (absorbs only 2.3% of light)
■ Extremely strong (100–200 times stronger than steel)
■ Flexible (can stretch up to 20%) Excellent thermal conductivity – approximately 5000 W/mK
■ Very low electrical resistance Very high electron mobility (200,000 cm²/Vs)
■Incredible electron flow speed – (1/300) of the speed of light
Electrical Parameters in STC
Mechanical Parameters
Electrical Parameters in NOCT
Cell: Mono PERC 6.54 × 3.27 in
Coatings: 0.13 in tempered glass with AR Coating
Junction Box (J.Box): IP68, 3 diodes
Cable Length: Vertical -11.80 in; horizontal -55.12 in
Module Dimensions: 69.69 × 44.65 × 1.18 in
Open-circuit voltage (Voc): 41.54 V
Voltage at MPP (Vmpp): 45.15 V
Open-circuit voltage (Voc): 52.60 V
Maximum power (Pmax): 560+ W
Max. system voltage DC 1500 V
Open-circuit voltage (Voc): 49.73 V
Number of Cells: 144 (6 × 24)
Current at MPP (Impp): 12.85 A
Short-circuit current (Isc): 13.57 A
Graphene efficiency: 22.50%
Current at MPP (Impp): 10.52 A
Short-circuit current (Isc): 10.91 A
Weight: 59.53 lbs
Frame: Anodized aluminum
Cable Cross-section: 4 mm
Connectors: MC4 or MC4 – compatible
